产品说明:

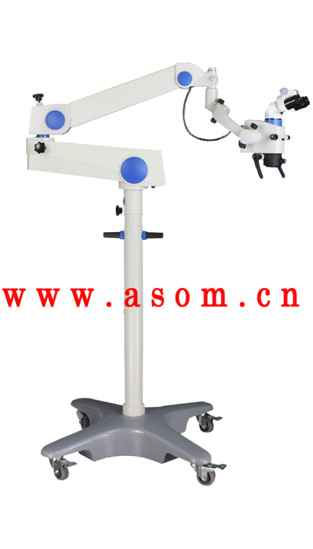

ASOM-610 手术显微镜,采用复消色差光学系统,连续无级变倍,光学平衡技术,光学镜片采用肖特玻璃,多层镀膜技术,密封性能好,防霉变,图像失真度小,分辨率高,光学衰减小,色彩自然,
立体感强,景深大。电器采用模块设计,限位及故障自动报警。可选购三维旋转立体助手镜、数码相机、高清晰摄像、图像分析系统及工作站;适用于脑外科(神经外科)、耳鼻喉科(ENT)、口腔科、眼科、骨科、动物实验等显微外科手术。
性能特点:
便携式手术显微镜,特别适用于流动医疗
采用美国10万小时超长寿命LED光源
光斑可调,滤镜滤光片,黄色、绿色,亮度连续可调
全新机架,小巧,美观,运动灵活
技术指标:
目镜 放大倍率12.5X,瞳距调整范围40~80mm,视度调节+6D~-6D
双目主刀镜 45º主刀镜或选购30º -90º、0º-210º可变倾角主刀镜,或选购90º直主刀镜+30º楔形分光器
放大倍率 2X~28X连续无极变倍
照明光源 LED冷光源照明,超高亮度无级调节。物面最大照度 ≥80000lx
定焦物镜距离 F=200mm (可选250/300/350/400mm)微调焦范围 ≥15mm
选购三维旋转立体助手镜 三关节旋转设计,每关节可360º旋转,与主镜
成90º、180º等任意角度位置观察,带图像方位调节功能
选购大变焦物镜 F=180~300mm 或200~320mm
选购倾摆装置(钟摆) 单反/微单照相、内置或外接摄像系统、手机、图像采集工作站等选购件。 |
Specifications:
Eyepieces Magnifictaion 12.5X,pupil distance adjustable range 40mm~80mm,
diopter adjustment range +6D~-6D.
Binocular 45º binocular tube or optional 30º-90ºand 0º-210º variable angle binocular tube,
or optional 90º straight binocular tube +30º wedge beamsplitter.
Magnification continuous zoom type:total magnification 2X~28X.
Illumination LED cold light,strong linght,longer lifetime,brightness adjustable
infinitely,illumination intensity≥80000lx
Focus lens F=200mm(250/300/350/400mm Optional) Fine tuning range ≥15mm
Zoom assistant(optional) Free-rotatable assistant stereoscope,the same
magnification and field of view as binoular tube
Big zoom objective(optional) F=180~300mm or 200~320mm
Pendilum function SLR/Micro single camera、built-in or external camera system、Mobile、IMAQ workstation etc
Rotinng head for all direction operate by two handles,free and easy to operate |
